Monitoring

Device Monitoring

Have your finger on the pulse.

Why should I care?

Since mining is usually considered as an investment, we believe that monitoring should be an essential part of your mining operation. Although your rewards are not directly affected by any monitoring settings, they can be better managed with few simple tools we have developed so far.

Monitoring helps you supervise how your miners work in time and minimizes losses caused by connection issues or mining hardware/software failures.

How can monitoring help?

Monitoring allows you to be alerted once a mining device starts misbehaving. Notifications are sent via e-mail or in your mobile app. E.g. there are communication issues between your miner and our pool. Such alerts will help you to react faster and therefore minimize the financial impact of the outage.

Outages may typically have the following causes:

Internet connectivity issues
Hardware power-supply (PSU) failures
Mining hardware overheating
Mining software issues

Below you can find simple step-by-step instructions how to setup monitoring in order to keep track of how your mining equipment is doing.

How to enable monitoring?

Enable sending monitoring emails (Mining > Settings > Reporting) or notifications (Mobile app).
You can enable worker monitoring on each worker profile separately.
Once the worker monitoring is enabled, the Alert limit can be set: a. Automatically - our system selects the Alert Limit based on the past performance of the worker b. Manually - You can set your own Alert Limit value

Once you enable monitoring for your workers you will see each worker in one of these states: OK, Low, Offline, Disabled.

Permanently Low or Offline worker states can be caused by a weak worker. We recommend to switch off monitoring for such workers. If it is not the case please do not hesitate to contact our support.

Please note: The pool keeps track of mining devices on a worker basis. This means that if you have more than one mining device connected to the pool as a single worker, monitoring and issue reporting covers all the mining devices in bulk. On the other hand, when you setup a designated worker name for every mining device you have (and connect them correctly), the pool can track down hash rate drops and report them to you for each mining device separately.

How does monitoring work?

The pool takes a snapshot of the effective hash rate for all your workers every 5 minutes. This value is then compared to Alert Limit (you setup this value while enabling the monitoring).

The period of 5 minutes is sufficient for collecting just enough data to calculate all the values with a certain accuracy without clogging our servers. With a Vardiff introduced, even a slow miner can submit sufficient amount of results.

Device monitoring states

There are 4 possible states of your worker, regarding monitoring. Every worker is always in one of the following states:

State	Description
OK	Means that the worker's hash rate is greater or equal to alert limit. This is the desired state. If everything works properly and the configuration is correct, you should see this state all the time
Low	This state signals that worker's hash rate is lower than it should be but the device still submits some shares. It was connected and working somehow at least part of the measuring period. A worker goes from OK to Low when its hash rate is lower than the alert limit for 2 consecutive periods. In the case you see this state for longer period of time, please create a ticket to our support.
Offline	You could see this state when monitoring is enabled for the worker but there is no hash rate detected for the worker. The pool doesn't monitor the actual network connection of the worker. The only significant value is hash rate.
Disable	When you switch off monitoring for a worker its state is reported as Disabled, regardless a fact if it submits some shares or not.

Mobile App

The mobile application offers a convenient overview of your mining and allows you to receive notifications for significant events of your choice such as:

worker issues (see device monitoring article for more details)
new block found
payout sent

Download the official application for Braiins Pool for free – available for Android and Apple iOS for iPhone.

Please be aware that our mobile app is not a mining app – it is an account monitoring tool. You will not be able to mine any coins with it.

How to set up the mobile app?

To monitor your user account in our official mobile app, please follow these steps:

Download the application on your mobile device.

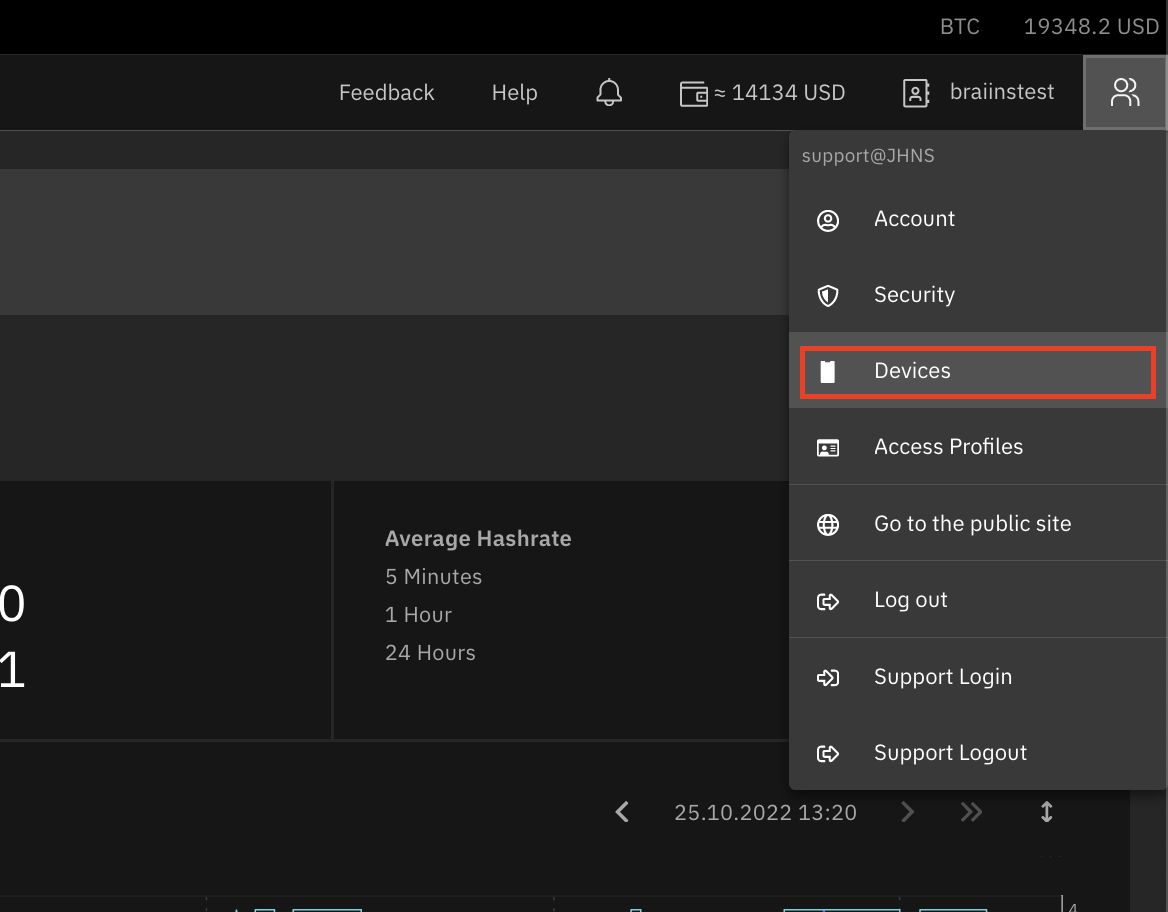

On the Braiins Pool website go to User menu > Devices.

Dashboard

Fill in the New device label field with a name of your choice and confirm by clicking on Connect.
Connect the mobile app to your user account by either scanning the QR code in the mobile app or manually entering the token value in the mobile app.

How to unlink my phone from the app?

In case you lost your mobile device, or you no longer want it to have access to your account, you can unlink the device in the Devices section. All device management options can be found in the Settings > Devices menu.

API configuration

Do you want to pull the mining stats/data and analyze them yourself? The pool API is here for you!

Overview

The pool API provides data in JSON fills on four endpoints: stats, profile, workers and payouts. You have to include the abbreviation of the selected coin (e.g. btc) and your access token in every API URL.

To acquire access token (API key) needed for API authentication, please follow these steps:

Go to Settings > Access Profiles
Select one of your access profiles or create a new one
Select Allow access to web APIs in the access profile detail
Click on Generate New token
Save the changes

Each access profile has its own access token (in case API access is enabled). Access tokens can be regenerated any time, effectively canceling the former access token belonging to the selected access profile.

API authentication

An access profile token has to be included in the HTTP header field named Pool-Auth-Token or X-Pool-Auth-Token to authenticate your requests.

Example request using cURL:

curl https://pool.braiins.com/stats/json/btc/ -H "Pool-Auth-Token: <your access token>"

API request limit

The API allows for approximately one request per five seconds (safe value). When you transiently exceed this limit, some of your requests will be ignored. In case the allowed request rate is exceeded greatly or over a longer period of time, your IP address might get banned. If that is the case, please contact us to resolve the situation.

Pool Stats API

Provides information about pool performance and recently found blocks.

URL:

https://pool.braiins.com/stats/json/btc

Sample out

{
    "btc": {
        "hash_rate_unit": "Gh/s",
        "pool_active_workers": 1,
        "pool_5m_hash_rate": 5727000000.74660415488,
        "pool_60m_hash_rate": 5617000000.9942200615822,
        "pool_24h_hash_rate": 5517000000.8851972672885,
        "update_ts": 1699938300,
        "blocks": {
            "549753": {
                "date_found": 1542002919,
                "mining_duration": 3423,
                "total_shares": 4640771710739,
                "state": "confirmed",
                "confirmations_left": 0,
                "value": "12.92594863",
                "user_reward": "0.00006194",
                "pool_scoring_hash_rate": 5878745444.967269
            }
        },
        "fpps_rate": 0.00000241
    }
}

General Pool Stats

Field	Type	Description
`hash_rate_unit`	string	unit used for the hash rate values
`pool_5m_hash_rate`	number	pool hash rate for the last 5 minutes
`pool_60m_hash_rate`	number	pool hash rate for the last 60 minutes
`pool_24h_hash_rate`	number	pool hash rate for the last 24 hours
`update_ts`	number	timestamp when the stats were updated
`blocks`	object	information for the last 15 blocks (breakdown below)
`fpps_rate`	number	pay par share rate

Latest Blocks

Field	Type	Description
`date_found`	number	Unix time when given block was found
`mining_duration`	number	duration of the round leading to given block
`total_shares`	number	number of shares collected during the round
`state`	string	state of given block
`confirmations_left`	number	number of confirmations left
`value`	string	block value
`user_reward`	string	user reward for the given block
`pool_scoring_hash_rate`	number	pool scoring hash rate at the time when block was found

User Profile API

Provides information about users performance and rewards.

URL:

https://pool.braiins.com/accounts/profile/json/btc/

Sample out

{
    "username": "username",
    "btc": {
        "all_time_reward": "0.15000000",
        "hash_rate_unit": "Gh/s",
        "hash_rate_5m": 27978,
        "hash_rate_60m": 28191,
        "hash_rate_24h": 28357,
        "hash_rate_yesterday": 28197,
        "low_workers": 0,
        "off_workers": 0,
        "ok_workers": 2,
        "dis_workers": 2,
        "current_balance": "0.15000000",
        "today_reward": "0.000166667",
        "estimated_reward": "0.00011940",
        "shares_5m": 123,
        "shares_60m": 1476,
        "shares_24h": 35424,
        "shares_yesterday": 0
    }
}

Field	Type	Description
`username`	string	username
`all_time_reward`	string	cumulative all-time reward
`hash_rate_unit`	string	unit used for the hash rate values
`hash_rate_5m`	string	average hash rate for the last 5 minutes
`hash_rate_60m`	number	average hash rate for the last 60 minutes
`hash_rate_24h`	number	average hash rate for the last 24 hours
`hash_rate_yesterday`	number	average hash rate for the previous UTC day
`low_workers`	number	number of workers with `low` state
`off_workers`	number	number of workers with `off` state
`ok_workers`	number	number of workers with `ok` state
`dis_workers`	number	number of workers with disabled monitoring
`current_balance`	string	current reward balance
`today_reward`	string	confirmed reward for this day
`estimated_reward`	string	estimated reward for the current block
`shares_5m`	number	active shares for last 5 minutes
`shares_60m`	number	active shares for last hour
`shares_24h`	number	active shares for last day
`shares_yesterday`	number	active shares for yesterday

Daily Reward API

Provides information about about rewards for the selected time period. Returns last 90 days by default.

URL:

https://pool.braiins.com/accounts/rewards/json/btc?from=[from]&to=[to]

COIN: BTC
FROM: string representation of date in ISO format (YYYY-MM-DD)
TO: string representation of date in ISO format (YYYY-MM-DD)

Example URL request:

https://pool.braiins.com/accounts/rewards/json/btc?from=2024-11-30&to=2024-12-02

{
    "btc": {
        "daily_rewards": [
            {
                "date": 1733097600,
                "total_reward": "0.36361081",
                "mining_reward": "0.35648119",
                "bos_plus_reward": "0.00712962",
                "referral_bonus": "0.00000000",
                "referral_reward": "0.00000000",
                "calculation_date": 1733191200
            },
            {
                "date": 1733011200,
                "total_reward": "0.36361097",
                "mining_reward": "0.35648200",
                "bos_plus_reward": "0.00712960",
                "referral_bonus": "0.00000000",
                "referral_reward": "0.00000000",
                "calculation_date": 1733104800
            },
            {
                "date": 1732924800,
                "total_reward": "0.36361020",
                "mining_reward": "0.35648102",
                "bos_plus_reward": "0.00712973",
                "referral_bonus": "0.00000000",
                "referral_reward": "0.00000000",
                "calculation_date": 1733018400
            }
        ]
    }
}

Field	Type	Description
`date`	number	Unix time (the first second of the date)
`total_reward`	number	the sum of all reward types for the day
`mining_reward`	number	the standard mining reward
`bos_plus_reward`	number	the amount refunded (pool fee refund) for mining with Braiins OS
`referral_bonus`	number	bonus received by being referred to Braiins OS
`referral_reward`	number	reward earned for HR referred to Braiins OS
`calculation_date`	number	calculation date timestamp

Daily Hashrate API

Provides information about daily averages of hashrate for user or user group.

URL:

https://pool.braiins.com/accounts/hash_rate_daily/json/[group]/btc

Where group is indicating if average hash rates should be returned for the user group. Variable coin is BTC.

Example URL request:

https://pool.braiins.com/accounts/hash_rate_daily/json/group/btc

Sample out

{
    "btc": [
        {
            "date": 1662674400,
            "hash_rate_unit": "Gh/s",
            "hash_rate_24h": 1073.7,
            "total_shares": 21600000
        },
        {
            "date": 1662588000,
            "hash_rate_unit": "Gh/s",
            "hash_rate_24h": 1000.7,
            "total_shares": 21200000
        }
    ]
}

Field	Type	Description
`date`	number	Unix time (the first second of the date)
`hash_rate_unit`	string	unit used for the hash rate values
`hash_rate_24h`	number	average hash rate for the last 24 hours
`total_shares`	number	number of shares collected during the day

Block Rewards API

Provides information about block rewards.

URL:

https://pool.braiins.com/accounts/block_rewards/json/btc?from=[from]&to=[to]

COIN: BTC
FROM: string representation of date in ISO format (YYYY-MM-DD)
TO: string representation of date in ISO format (YYYY-MM-DD)

Example URL request:

https://pool.braiins.com/accounts/block_rewards/json/btc?from=2022-05-01&to=2022-05-07

Sample out

{
    "btc": {
        "block_rewards": [
            {
                "block_found_at": 1651804117,
                "pool_scoring_hash_rate": 4441768989.204721,
                "user_scoring_hash_rate": 12981.581642348925,
                "block_value": "12.59169582",
                "user_reward": "0.06366676",
                "block_height": 567815,
                "mining_reward": "0.06366676",
                "braiinsos_plus_mining_bonus": "0.00000000",
                "referral_reward": "0.00000000",
                "referral_bonus": "0.00000000",
                "confirmations_left": 0
            },
            {
                "block_found_at": 1651811734,
                "pool_scoring_hash_rate": 4441768989.387698,
                "user_scoring_hash_rate": 13041.508413918604,
                "block_value": "12.66780812",
                "user_reward": "0.07129083",
                "block_height": 567816,
                "mining_reward": "0.07129083",
                "braiinsos_plus_mining_bonus": "0.00000000",
                "referral_reward": "0.00000000",
                "referral_bonus": "0.00000000",
                "confirmations_left": 0
            }
        ],
        "hash_rate_unit": "Gh/s"
    }
}

Field	Type	Description
`block_found_at`	number	unix timestamp (UTC), when the block was found
`pool_scoring_hash_rate`	number	total scoring hash rate of the pool at time when the block was found
`user_scoring_hash_rate`	number	total scoring hash rate of the user at time when the block was found
`block_value`	string	total value of the block
`user_reward`	string	total reward amount for the user
`block_heigh`	number	number of the block within the coin's blockchain
`mining_reward`	string	amount of mining reward for delivered shares on the block
`braiinsos_plus_mining_bonus`	string	pool fee refund for mining with Braiins OS device
`referral_reward`	string	pool fee refund for mining with Braiins OS device and with special referral code
`referral_bonus`	string	pool fee refund for propagation of Braiins OS with dedicated referral code
`confirmations_left`	number	number of confirmations left

Worker API

Provides performance data for each one of users worker.

URL:

https://pool.braiins.com/accounts/workers/json/btc

Sample out

{
    "btc": {
        "workers": {
            "username.worker1": {
                "state": "ok",
                "last_share": 1542103204,
                "hash_rate_unit": "Gh/s",
                "hash_rate_scoring": 15342,
                "hash_rate_5m": 14977,
                "hash_rate_60m": 15302,
                "hash_rate_24h": 15351,
                "shares_5m": 90304,
                "shares_60m": 1125762,
                "shares_24h": 20945364
            },
            "username.worker2": {
                "state": "ok",
                "last_share": 1542103200,
                "hash_rate_unit": "Gh/s",
                "hash_rate_scoring": 12952,
                "hash_rate_5m": 13001,
                "hash_rate_60m": 12889,
                "hash_rate_24h": 13006,
                "shares_5m": 90304,
                "shares_60m": 1125762,
                "shares_24h": 20945364
            }
        }
    }
}

Field	Type	Description
`last_share`	number	Unix time of the last accepted share
`state`	string	state of the worker (`ok`/`low`/`off`/`dis`)
`hash_rate_unit`	string	unit used for the hash rate values
`hash_rate_scoring`	number	current scoring hash rate
`hash_rate_5m`	number	average hash rate for the last 5 minutes
`hash_rate_60m`	number	average hash rate for the last 60 minutes
`hash_rate_24h`	number	average hash rate for the last 24 hours
`shares_5m`	number	active shares for last 5 minutes
`shares_60m`	number	active shares for last hour
`shares_24h`	number	active shares for last day

Payouts API

Provides data for payouts transactions.

URL:

https://pool.braiins.com/accounts/payouts/json/btc?from=[from]&to=[to]

COIN: BTC
FROM: string representation of date in ISO format (YYYY-MM-DD)
TO: string representation of date in ISO format (YYYY-MM-DD)

Example URL request:

https://pool.braiins.com/accounts/payouts/json/btc?from=2022-05-01&to=2022-05-07

Sample out

{
    "onchain": [
        {
            "financial_account_name": "Bitcoin Account",
            "requested_at_ts": 1721997284,
            "resolved_at_ts": 1721999584,
            "status": "confirmed",
            "amount_sats": 50000,
            "fee_sats": 1000,
            "destination": "bc1qxy1kgdycjrsqtcq2n0yrf3493p83kkfjhx0w2h",
            "tx_id": "a5f3e1f0a8e7f2d8c0c4f9b2b7b0b1a0987654321",
            "trigger_type": "triggered"
        },
        {
            "financial_account_name": "Bitcoin Account",
            "requested_at_ts": 1722997284,
            "resolved_at_ts": 1722999584,
            "status": "queued",
            "amount_sats": 1000000,
            "fee_sats": 0,
            "destination": "bc1qxy1kgdycjrsqtcq2n0yrf3493p83kkfjhx0w2h",
            "tx_id": null,
            "trigger_type": "triggered"
        }
    ],
    "lightning": [
        {
            "financial_account_name": "Bitcoin Financial Account",
            "requested_at_ts": 1712846879,
            "resolved_at_ts": 1712846885,
            "status": "confirmed",
            "amount_sats": 441348,
            "fee_sats": 0,
            "destination": "braiins@walletofsatoshi.com",
            "invoice": "lnbc4413480n1pnp07prpp5e8jnrtyvq6rlef4nzzkgepn8j054u3sk3l9ar5rf0tha0tzjmhzqhp5m7l6c8fmknqvsqfdlp3h49899s7zcsx9gzfu0vhvad053k5ewj0qcqzzsxqyz5vqsp5thnzqf8q4lxufz60xt57s6r4ylr2c5ap6x5n7uc56y8lnmnyn06q9qyyssq7w3rd8e2s8wgyqkpdcqdl5wd8zakslpqp5kdchgew6h5t0wkrwg4nxmhd7yqpr0mqf4kudx9x8ntmxccv9lgjlcj4ud358n6as58mhqprhaglh",
            "preimage": "93a0049b3963b7bd8d9d3e97cff2975745f83fa94562b4a0db208fe8cddcb3e5",
            "trigger_type": "triggered"
        },
        {
            "financial_account_name": "Bitcoin Financial Account 2",
            "requested_at_ts": 1712856879,
            "resolved_at_ts": 1712856885,
            "status": "failed",
            "amount_sats": 527,
            "fee_sats": 0,
            "destination": "braiins@walletofsatoshi.com",
            "invoice": null,
            "preimage": null,
            "trigger_type": "triggered"
        },
        {
            "financial_account_name": "Bitcoin Financial Account",
            "requested_at_ts": 1728983117,
            "resolved_at_ts": 1728983290,
            "status": "confirmed",
            "amount_sats": 12321,
            "fee_sats": 0,
            "destination": "braiins@walletofsatoshi.com",
            "invoice": "lnbc4413480n1pnp07prpp5e8jnrtyvq6rlef4nzzkgepn8j054u3sk3l9ar5rf0tha0tzjmhzqhp5m7l6c8fmknqvsqfdlp3h49899s7zcsx9gzfu0vhvad053k5ewj0qcqzzsxqyz5vqsp5thnzqf8q4lxufz60xt57s6r4ylr2c5ap6x5n7uc56y8lnmnyn06q9qyyssq7w3rd8e2s8wgyqkpdcqdl5wd8zakslpqp5kdchgew6h5t0wkrwg4nxmhd7yqpr0mqf4kudx9x8ntmxccv9lgjlcj4ud358n6as58mhqprhaglh",
            "preimage": null,
            "trigger_type": "manual"
        },
        {
            "financial_account_name": "Bitcoin Financial Account",
            "requested_at_ts": 1728983167,
            "resolved_at_ts": 1728983330,
            "status": "queued",
            "amount_sats": 11360,
            "fee_sats": 0,
            "destination": "braiins@walletofsatoshi.com",
            "invoice": "lnbc4413480n1pnp07prpp5e8jnrtyvq6rlef4nzzkgepn8j054u3sk3l9ar5rf0tha0tzjmhzqhp5m7l6c8fmknqvsqfdlp3h49899s7zcsx9gzfu0vhvad053k5ewj0qcqzzsxqyz5vqsp5thnzqf8q4lxufz60xt57s6r4ylr2c5ap6x5n7uc56y8lnmnyn06q9qyyssq7w3rd8e2s8wgyqkpdcqdl5wd8zakslpqp5kdchgew6h5t0wkrwg4nxmhd7yqpr0mqf4kudx9x8ntmxccv9lgjlcj4ud358n6as58mhqprhaglh",
            "preimage": null,
            "trigger_type": "triggered"
        }
    ]
}

Field	Type	Description
`financial_account_name`	string	name of the financial account
`requested_at_ts`	number	Unix time of the request
`resolved_at_ts`	number	Unix time of the payout resolution
`status`	string	status of the payout (`queued`/`confirmed`/`failed`)
`amount_sats`	number	amount of the payout in satoshis
`fee_sats`	number	amount of the payout fee in satoshis
`destination`	string	destination address of the payout (onchain address or lightning invoice)
`tx_id`	string	transaction id of the payout (onchain only)
`invoice`	string	lightning invoice of the payout (lightning only)
`preimage`	string	preimage of the payout (lightning only)
`trigger_type`	string	type of the payout trigger (`triggered`/`manual`)

Was this helpful?

Monitoring#

#Device Monitoring

#Why should I care?

#How can monitoring help?

#How to enable monitoring?

#How does monitoring work?

#Device monitoring states

#Mobile App

#How to set up the mobile app?

#How to unlink my phone from the app?

#API configuration

#Overview

#API authentication

#API request limit

#Pool Stats API

#General Pool Stats

#Latest Blocks

#User Profile API

#Daily Reward API

#Daily Hashrate API

#Block Rewards API

#Worker API

#Payouts API

Monitoring

Device Monitoring

Why should I care?

How can monitoring help?

How to enable monitoring?

How does monitoring work?

Device monitoring states

Mobile App

How to set up the mobile app?

How to unlink my phone from the app?

API configuration

Overview

API authentication

API request limit

Pool Stats API

General Pool Stats

Latest Blocks

User Profile API

Daily Reward API

Daily Hashrate API

Block Rewards API

Worker API

Payouts API
